APPLICATION: BMS Cable is widely used in Building Management Systems (BMS) for connecting sensors, controllers, actuators, and monitoring equipment. It is suitable for HVAC control systems, lighting control networks, fire alarm systems, access control systems, energy management systems, and other building automation applications. The cable ensures reliable data and signal transmission while maintaining system performance in commercial buildings, industrial facilities, hospitals, airports, hotels, and smart infrastructure projects.

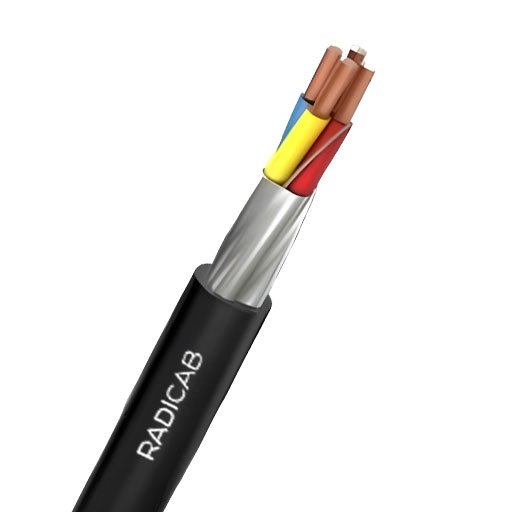

CONSTRUCTION:
| Parameter | Specification |
|---|---|
| Conductor | Stranded Annealed Copper |
| Insulation | PVC / PE Insulation |
| Core Configuration | Twisted Pair / Multi Pair |
| Shielding | Aluminum Foil Shield with Drain Wire (Optional) |
| Outer Sheath | PVC |
| Voltage Rating | 300/500 V (Typical) |
| Operating Temperature | -20°C to +70°C |
| Application | BMS, HVAC, Lighting Control, Fire Alarm & Automation Systems |
| Installation | Indoor Fixed Installation |
| Standard | Manufactured as per Applicable Industry Standards |
| No. of Cores | Overall Dia (App.) for Cross Sectional Area of Conductor | ||||
|---|---|---|---|---|---|
| 0.25 sqmm | 0.5 sqmm | 0.75 sqmm | 1 sqmm | 1.5 sqmm | |
| (No.) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 2 | 3.8 | 4.8 | 5.2 | 5.6 | 6.6 |
| 3 | 4.1 | 5.0 | 5.5 | 5.9 | 7.0 |
| 4 | 4.5 | 5.4 | 6.0 | 6.4 | 7.6 |
| 6 | 5.4 | 6.3 | 7.0 | 7.6 | 9.0 |
| 8 | 6.0 | 7.0 | 7.8 | 8.4 | 10.1 |
| 10 | 6.8 | 7.9 | 8.8 | 9.5 | 11.5 |
| 12 | 6.9 | 8.1 | 9.1 | 9.8 | 11.9 |
| 16 | 7.6 | 9.0 | 10.0 | 10.9 | 13.2 |
| 20 | 8.3 | 9.9 | 11.1 | 12.1 | 14.7 |
| 24 | 9.2 | 11.0 | 12.3 | 13.4 | 16.4 |
