APPLICATION: Solar cables connect solar panels to inverters and electrical systems in homes, allowing for solar energy generation. This energy can power household appliances, lighting systems, and other electrical devices, reducing the need for grid- based electricity and saving costs for homeowners.

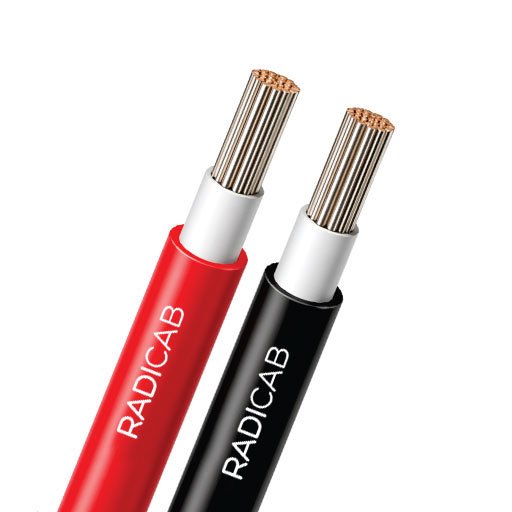

CONSTRUCTION:
| Parameter | Specification |
|---|---|
| Conductor | Tinned Annealed Copper |
| Insulation | Cross-Linked Polyolefin (XLPO) |
| Outer Sheath | UV Resistant XLPO |
| Voltage Rating | 1.5 kV DC (Typical) |
| Temperature Range | -40°C to +90°C |
| Flame Retardant | Yes |
| Halogen Free | Yes (LSZH) |
| UV Resistance | Excellent |
| Application | Solar PV Systems & Renewable Energy Installations |
| Cross Sectional Area of Conductor (Nom.) | Thickness of Insulation (Nom.) | Overall Diameter (Nom.) | Current Rating AC |
|---|---|---|---|
| (Sq mm) | (mm) | (mm) | (Ampere) |
| 1.5 | 0.7 | 4.4 | 30 |
| 2.5 | 0.7 | 4.8 | 41 |
| 4 | 0.7 | 5.4 | 55 |
| 6 | 0.7 | 6.1 | 70 |
| 10 | 0.7 | 7.3 | 98 |
| 16 | 0.7 | 8.6 | 132 |
| 25 | 0.9 | 10.4 | 176 |
| 35 | 0.9 | 11.8 | 218 |
| 50 | 1.0 | 13.8 | 276 |
| 70 | 1.1 | 15.6 | 347 |
| 95 | 1.1 | 17.7 | 416 |
