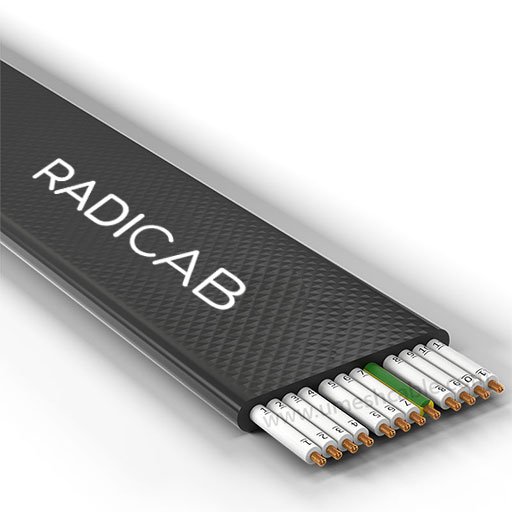

APPLICATION: Elevator Cables are specifically designed for use in passenger elevators, freight lifts, escalators, hoists, and other vertically moving systems. These cables provide reliable power, control, and signal transmission between fixed and moving parts of elevator installations. Their highly flexible construction ensures consistent performance under repeated bending and mechanical stress, making them suitable for residential, commercial, industrial, and high-rise building applications.
| Parameter | Specification |
|---|---|
| Conductor | Fine Stranded Annealed Copper |
| Insulation | PVC Insulation |
| Core Configuration | Multicore Flexible |
| Support Member | High-Tensile Strength Reinforcement (Optional) |
| Outer Sheath | Flexible PVC Sheath |
| Voltage Rating | 300/500 V or 450/750 V |
| Temperature Rating | -15°C to +70°C |
| Flexibility | Excellent |
| Application | Elevators, Lifts, Hoists & Moving Equipment |
| Installation | Vertical & Continuous Flexing Applications |
| Cross Sectional Area of Conductor (Nom.) | No. of Cores | Current Rating |
|---|---|---|
| (Sq mm) | (No.) | (Ampere) |
| 0.50 | 4 | 7 |
| 0.50 | 12 | 14 |
| 0.50 | 16 | 16 |
| 0.50 | 18 | 18 |
| 0.50 | 24 | 22 |
| 0.75 | 4 | 11 |
| 0.75 | 12 | 20 |
| 0.75 | 16 | 24 |
| 0.75 | 18 | 26 |
| 0.75 | 24 | 30 |
| 0.75 | 30 | 35 |
