APPLICATION: General purpose indoors or outdoors in dry or damp situations. Portable tools. washing machines, vacuum cleaners. lawn movers and light domestic applications.
CONSTRUCTION:
| Technical Data : | Max. Operating Temperature : 70oC |
| Rated Voltage : | 1100V / 0.5 mm2 to 4 mm2 — 300/500V, 6.0mm2 to 25mm2 — 450/750V |
| Specifications : | IS694 / BSEN 50525-2-11 / BS 7919 |
| Range : | 2c-5C x 0.50 – 25mm2 |

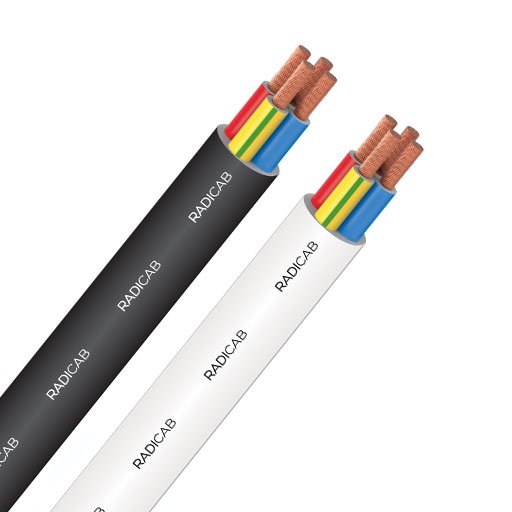

| Colors Available : | Black, White |
| Length Available : | 90 mtr / 100 yards |
| Construction : | 2 core, 3 core, 4 core |
| Conductor | Insulation | Thickness of Sheath and Diameter | Conductor Resistance at 20°C (max) | Current Rating | |||||
|---|---|---|---|---|---|---|---|---|---|
| Size of Cable | No. of Wire/Size of Wire | Thickness (Nominal) | Core OD | Sheath Thickness (Nominal) | 2 Core Outer Diameter | 3 Core Outer Diameter | 4 Core Outer Diameter | ||
| Sq.mm | Nos.mm | mm | mm | mm | mm | mm | mm | s/am | Amps. |
| 0.50 | 16/0.20 | 0.60 | 2.05 | 0.90 | 5.60 | 6.0 | 6.40 | 39.0 | 4 |
| 0.75 | 24/0.20 | 0.60 | 2.30 | 0.90 | 6.0 | 6.80 | 7.20 | 26.0 | 7 |
| 1.0 | 32/0.20 | 0.60 | 2.50 | 0.90 | 6.80 | 7.0 | 8.0 | 19.50 | 11 |
| 1.5 | 30/0.25 | 0.60 | 2.90 | 0.90 | 7.80 | 8.0 | 9.20 | 13.30 | 14 |
| 2.5 | 50/0.25 | 0.70 | 3.50 | 1.0 | 9.20 | 9.50 | 11.10 | 7.98 | 18 |
| 4.0 | 56/0.30 | 0.80 | 4.0 | 1.10 | 10.60 | 11.60 | 12.50 | 4.95 | 24 |
| 6.0 | 84/0.30 | 0.80 | 5.0 | 1.10 | 13.0 | 13.80 | 15.0 | 3.30 | 31 |
| 10.0 | 140/0.30 | 1.0 | 6.0 | 2.0 | 18.0 | 19.0 | 20.20 | 1.91 | 52 |
| 16.0 | 224/0.30 | 1.0 | 7.30 | 2.0 | 20.0 | 21.50 | 23.50 | 1.21 | 70 |
| 25.0 | 350/0.30 | 1.2 | 9.50 | 2.30 | 24.0 | 26.0 | 28.0 | 0.780 | 88 |
| 35.0 | 490/0.30 | 1.2 | 11.0 | 2.50 | 27.0 | 29.0 | 31.50 | 0.554 | 112 |
| 50.0 | 700/0.30 | 1.4 | 13.0 | 2.80 | 30.0 | 34.0 | 37.0 | 0.386 | 146 |
| 70.0 | 980/0.30 | 1.4 | 15.0 | 3.10 | 35.0 | 38.0 | 42.2 | 0.272 | 216 |
| 95.0 | 1330/0.30 | 1.6 | 18.0 | 4.0 | 42.0 | 44.50 | 48.8 | 0.206 | 262 |
