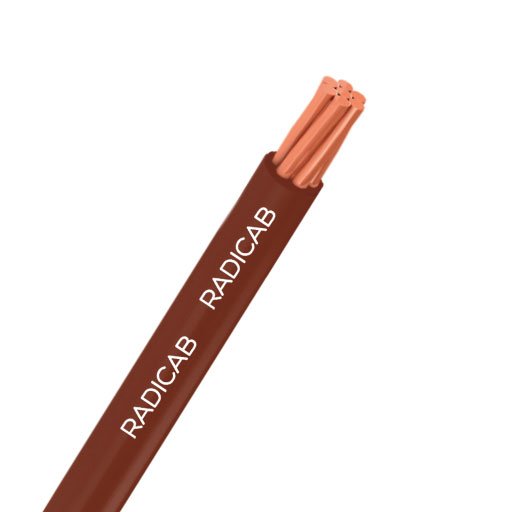

Single Core PVC Insulated Building Wires (HO7V-R & HO7V-U)

Single Core PVC Insulated Building Wires (HO7V-R & HO7V-U)

Commonly also known as

Building Wire
Single Core Wire
House Wire
Multistrand Wire

Single Core PVC Insulated Building Wires (HO7V-R & HO7V-U)

APPLICATION: The cables are suitable for power and lighting circuits and building
wiring suitable for use in semi flush exposed conduits, embedded conduits and in
closed installation ducts.

CONSTRUCTION:

Solid Annealed Bare Copper (ABC) conductor.
High-quality PVC insulated core.
Special PVC insulation compound.
Robust construction for fixed electrical wiring.
Reliable performance and long-term durability.

Technical Data :	MAR, Opereting Temperature : 70^oC
Rated Voltage :	450/750v (300/500V for 0.75mm² & 1.0 mm²)
Specifications :	BSEN 50525-2-31
Range :	0.75 – 300 mm2
Colors Available :	Red, Yellow, Green, Blue, Black
Length Available :	100 Yards

SPECIFICATIONS:

Nominal Cross Sectional Area (Sq. mm)	Nominal Insulation Thickness (mm)	Overall Diameter Lower Limit (mm)	Overall Diameter Upper Limit (mm)	Approx. Net Weight (kg/km)
1.5	0.70	2.70	3.30	19
2.5	0.80	3.30	4.00	33
4	0.80	3.80	4.60	50
6	0.80	4.30	5.20	74
10	1.00	5.60	6.70	126
16	1.00	6.40	7.80	184
25	1.20	8.10	9.70	295
35	1.20	9.00	10.90	375
50	1.40	10.60	12.80	510
70	1.40	12.10	14.60	710
