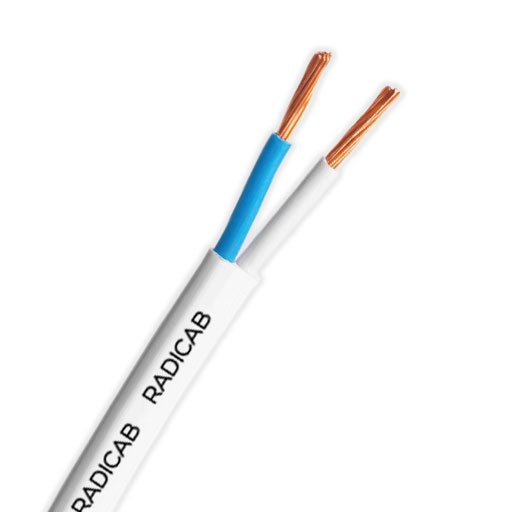

APPLICATION: General purpose indoors or outdoors in dry or damp situations. Portable tools. washing machines. vacuum cleaners, lawn movers and light domestic applications.
CONSTRUCTION:
| Technical Data : | Max. Operating Temperature : 70oC |
| Rated Voltage : | 1100V / — 300/500V |
| Specifications : | IS694 / BSEN 50525-2-11 / BS 7919 |
| Range : | 2c x 0.5mm2 – 25mm2 |
| Colors Available : | Black, White |
| Length Available : | 90 mtr / 100 yards |
| Cross Sectional Area of Conductor (Nom.) | Number / Dia of Conductor Strands (Nom.) | No. of Cores | Overall Dimensions (App.) |
|---|---|---|---|
| (sq mm) | (No. / mm) | (No.) | W × H (mm) |
| ~0.22 | 14/0.15 | 2 | 3.4 × 5.5 |
| 0.5 | 16/0.196 | 2 | 4.2 × 6.5 |
| 0.75 | 24/0.196 | 2 | 4.2 × 6.5 |
| 1 | 32/0.20 | 2 | 8.0 × 5.4 |
| 1.5 | 22/0.30 | 2 | 8.6 × 5.6 |
| 2.5 | 36/0.30 | 2 | 10.5 × 6.6 |
| 4 | 56/0.30 | 2 | 12.0 × 7.4 |
| 6 | 84/0.30 | 2 | 13.0 × 8.0 |
| 10 | 140/0.30 | 2 | 16.0 × 9.6 |
| 16 | 126/0.40 | 2 | 18.5 × 11.0 |
