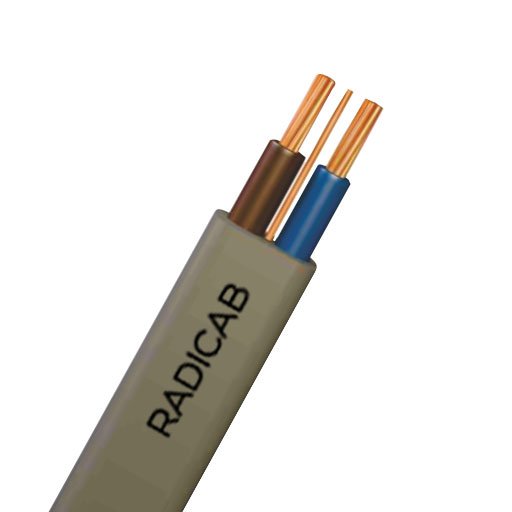

APPLICATION: For domestic and industrial wiring. Suitable for surface wiring where there is little risk of mechanical damage.
CONSTRUCTION:
| Technical Data : | Max. Operating Temperature : 70oC |
| Rated Voltage : | 300/500V |
| Specifications : | BS 6004 |
| Range : | 2c x 1.0mm2 + with or without earth |
| Colors Available : | Grey |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA (mm²) | NOMINAL THICKNESS OF INSULATION (mm) | NOMINAL OVERALL DIAMETER (mm) | NOMINAL OVERALL DIAMETER (mm) | NOMINAL OVERALL DIAMETER (mm) | NOMINAL OVERALL DIAMETER (mm) | NOMINAL WEIGHT (kg/km) |
|---|---|---|---|---|---|---|---|
| 2 | 1 | 1 | 1 | 0.6 | 0.9 | 4.35 × 7.95 | 68 |
| 2 | 1.5 | 1 | 1 | 0.7 | 0.9 | 4.85 × 8.9 | 87 |
| 2 | 2.5 | 1 | 1.5 | 0.8 | 1 | 5.65 × 10.65 | 120 |
| 2 | 4 | 2 | 1.5 | 0.8 | 1 | 6.3 × 11.95 | 172 |
| 2 | 6 | 2 | 2.5 | 0.8 | 1.1 | 7.1 × 13.7 | 235 |
| 2 | 10 | 2 | 4* | 1 | 1.2 | 8.7 × 17.25 | 373 |
| 2 | 16 | 2 | 6* | 1 | 1.3 | 9.85 × 20 | 530 |
| 3 | 1 | 1 | 1 | 0.6 | 0.9 | 4.35 × 9.8 | 91 |
| 3 | 1.5 | 1 | 1 | 0.7 | 0.9 | 4.85 × 11.2 | 115 |
