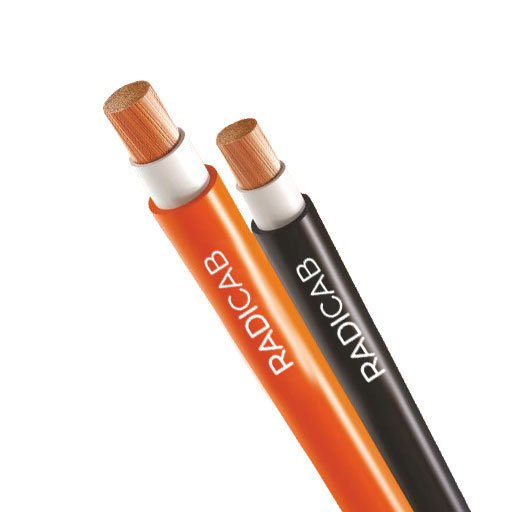

APPLICATIONS: Radicab is one of the trusted Welding Cable Manufacturers, supplying high-performance welding cables that are widely used for connecting welding machines to electrode holders and workpieces in arc welding operations. They are suitable for fabrication shops, construction sites, shipyards, automotive workshops, mining operations, steel plants, and industrial manufacturing facilities where high flexibility and reliable current transmission are essential.
CONSTRUCTION:
| Parameter | Specification |
|---|---|
| Conductor | Extra Fine Stranded Annealed Copper |
| Conductor Class | Class 5 / Class 6 Flexible |
| Insulation | EPDM Rubber / EPR / Flexible PVC |
| Cable Type | Single Core Flexible |
| Voltage Rating | 100/100 V, 450/750 V (Typical) |
| Temperature Range | -20°C to +85°C |
| Flexibility | Excellent |
| Abrasion Resistance | High |
| Oil & Moisture Resistance | Excellent |
| Application | Arc Welding, Grounding & Industrial Power Connections |
SPECIFICATIONS:
| Cable Size | Nominal Inner Insulation Thickness |
Nominal sheath Thickness |
Overall Cable Diameter | Max. Conductor Resistance at 20°C |
Current Rating Welding Applications |
Non Welding Applications | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Insulation |
Double Insulation |
||||||||||
| 100% | 85% | 60% | 30% | 20% | |||||||
| Sq.mm | mm | mm | mm | mm | s/km. | amp | amp | amp | amp | amp | amp |
| 10.0 | 1.0 | 1.10 | 7.0 | 8.50 | 1.910 | 105 | 115 | 135 | 190 | 235 | 110 |
| 16.0 | 1.10 | 1.30 | 9.0 | 10.0 | 1.210 | 135 | 145 | 175 | 245 | 302 | 138 |
| 25.0 | 1.20 | 1,40 | 10.30 | 12.0 | 0.780 | 180 | 195 | 230 | 330 | 402 | 187 |
| 35.0 | 1.20 | 1.60 | 11.85 | 13.50 | 0.554 | 225 | 245 | 290 | 410 | 503 | 233 |
| 50.0 | 1.30 | 1.70 | 14.0 | 15.20 | 0.386 | 285 | 310 | 370 | 520 | 637 | 295 |
| 70.0 | 1.40 | 1.80 | 15.80 | 18.0 | 0.272 | 355 | 385 | 460 | 650 | 794 | 372 |
| 95.0 | 1.80 | 2.0 | 17.70 | 20.60 | 0.206 | 430 | 470 | 560 | 790 | 961 | 449 |
| 120.0 | 2.0 | 2.10 | 19.50 | 23.0 | 0.161 | 500 | 540 | 650 | 910 | 1118 | 523 |
